Power Distribution Centers

MODEL-500C-TS

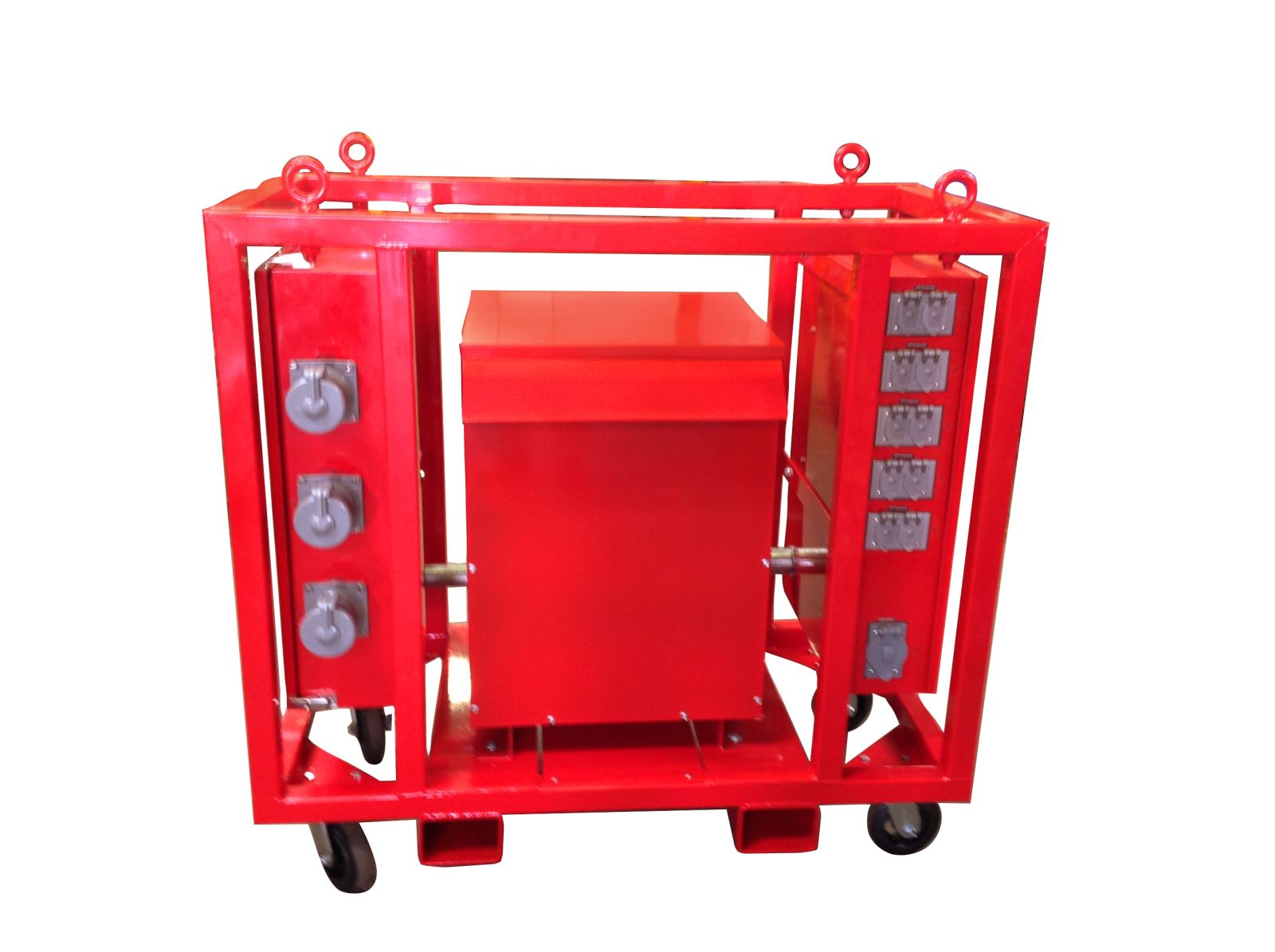

Available for rental or sale, the 500C-TS is ideal for plant outage work. It has more connections than other PDC options. It's smaller, lighter frame and multiple lifting options make it easy to move around the job site.

  • 50 KVA Power Distribution Cart 480-120/240 VAC
  • Stainless steel panel enclosure with 2 padlockable latches, viewing window, NEMA 3R
  • 225A Siemens panel interior 30 Ckt 480 VAC
  • 225A 3P primary main incoming circuit breaker 480 VAC
  • 6 - 60A 3P circuit breaker 480 VAC
  • 6 - 60A HBL460RS2W pin/sleeve receptacle with flip lid cover, NEMA 3R
  • 1  100A 2P circuit breaker 480 VAC – transformer
  • 50 KVA transformer ventilated 240x480-120/240 VAC - NEMA 3R
  • 1 - 200A Siemens panel interior 30 Ctk 120/240 VAC
  • 1 - 200A 2P secondary main circuit breaker 120/240 VAC
  • 10 - 20A 1P GFCI circuit breaker 120 VAC
  • 10 - 20A duplex receptacle. 120 VAC 5 – 20R with flip lid “In Use” cover  – NEMA 3R
  • 2 – 30A 2P circuit breaker 120/240 VAC
  • 2 – 30A twist-lock receptacle 240 VAC L6-30R With Flip Lid “In Use” Cover - NEMA 3R
  • Cart with 6” casters, 2 lockable, 2 fixed,
  • 4 lifting eyes and fork lift pockets
  • Powder coated
